Silicon Carbide Ceramic Foam Filters

Ceramic Foam Filter is a special functional ceramic product with a three- dimensional net-like tridimensional and inter-penetrating porous structure.

Common Sizes
Round: D40, D50, D60, D70, D80, …… D400
Square / rectangular: 40x40, 50x50, 55x55, 75x50, 75x75,…… 400x400 Other size, special shape are available on request.
Thickness: 12mm, 15mm, 20mm, 22 mm, 25mm, 30mm, 40mm Other size, special thickness are available on request.
Standard: PPI 10, 15, 20, 30  40
Depending on the dimensions, the filters may be available in PPI 15，20, 30 and 40.

The Foam Ceramic Filter Typical Placed Way:
Silicon carbide foam ceramic filter can be placed in any part of the gating system, but should be choose according to the casting characteristics and specific production conditions. Generally speaking, the more close to the gate, the better for filtering purification effect. Here are several typical ways of placement:
1. Installation in Pouring cup: usually used in precision casting and iron mould coated sand casting.
2. Horizontal Installation in Vertical Runner: usually used in the whole case pouring molten iron is not much, especially suitable for Vertical Runner is located in the center of mould and branch runner gating system.
3. Horizontal Installation in Horizontal Runner: liquid metal filling smoothly, to avoid the direct impact of metal liquid to filter. Better to play the slag function of the upper model runner, and was convenient.
4. Vertical Installation in Horizontal Runner: metal fluid flow faster, have a good filling ability: when molten metal impact the surface of filter, the impact resistant ability should be considered.

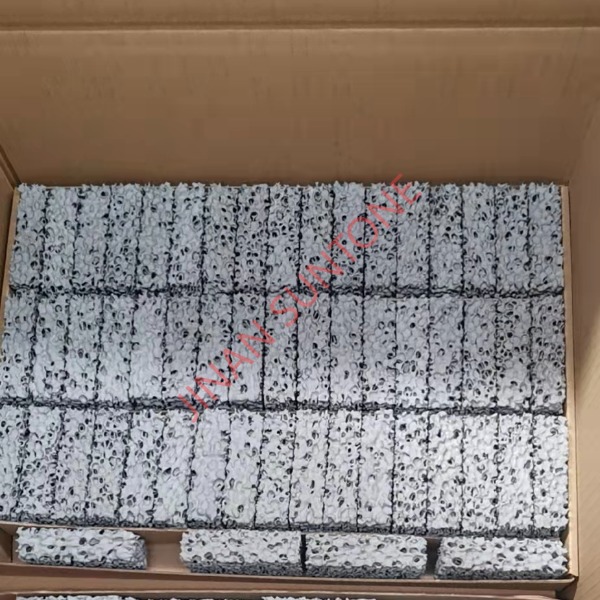

Packing: carton packing or according to the requirements of customers,then packed in wooden pallets.

Attention:Pay attention to care when loading and unloading, handling, protect the goods against press.
